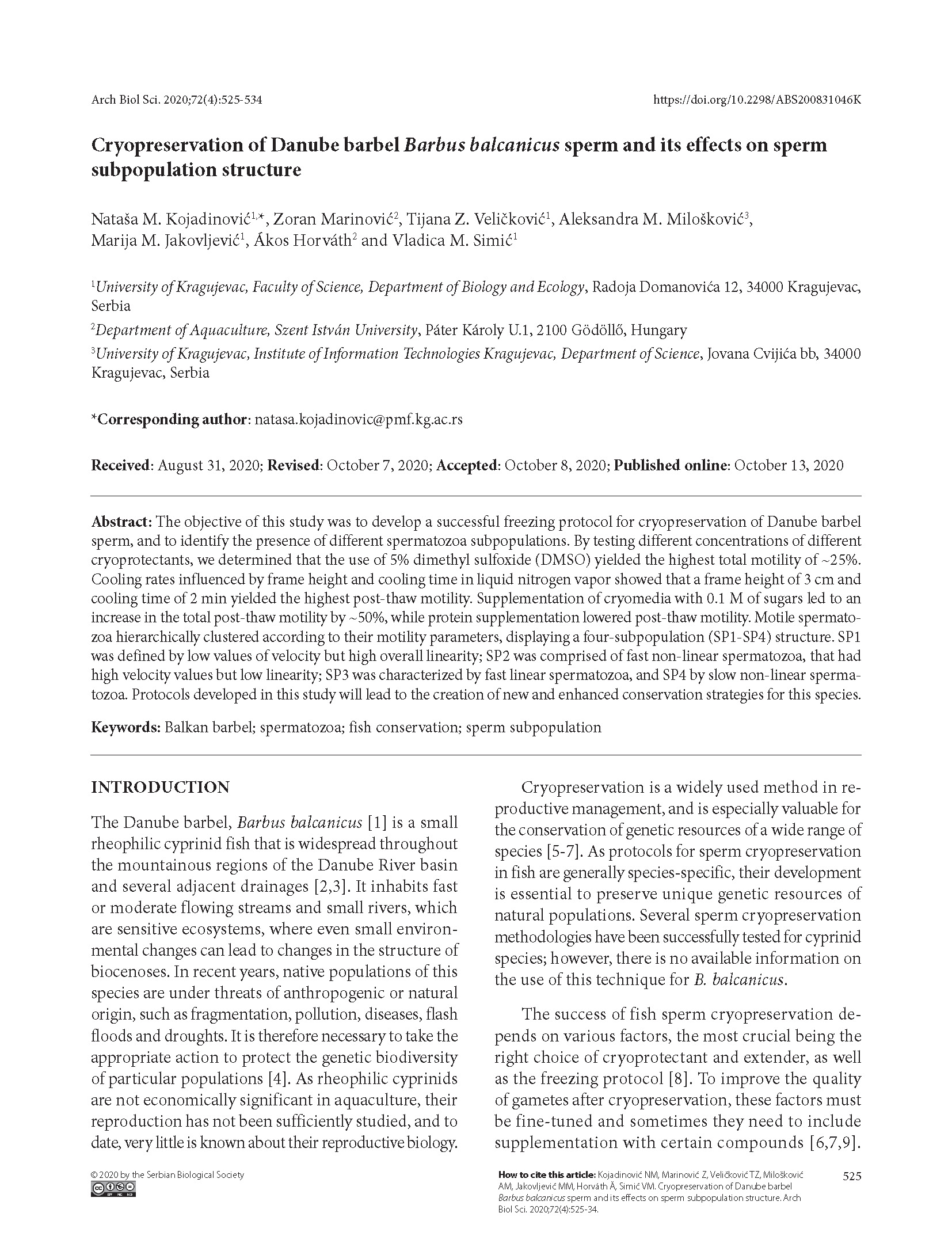

Cryopreservation of Danube barbel Barbus balcanicus sperm and its effects on sperm subpopulation structure




Balkan barbel, spermatozoa, fish conservation, sperm subpopulation


Paper description:

  • There is no cryopreservation protocol for Danube barbel sperm, although more than 200 species-specific protocols for different freshwater fish species have been developed.
  • The effects of different cryoprotectants and their concentrations, different cooling rates, and the effect of sugar and protein supplementation during development of a successful protocol for cryopreservation of Danube barbel sperm were investigated.
  • The most suitable conditions for cryopreservation were obtained using cryomedium consisting of 5% DMSO supplemented with 0.1 M sugars.
  • The first successful cryopreservation protocol of Danube barbel sperm is essential for the preservation of the unique genetic resources of natural populations.

Abstract: The objective of this study was to develop a successful freezing protocol for cryopreservation of Danube barbel sperm, and to identify the presence of different spermatozoa subpopulations. By testing different concentrations of different cryoprotectants, we determined that the use of 5% dimethyl sulfoxide (DMSO) yielded the highest total motility of ~25%. Cooling rates influenced by frame height and cooling time in liquid nitrogen vapor showed that a frame height of 3 cm and cooling time of 2 min yielded the highest post-thaw motility. Supplementation of cryomedia with 0.1 M of sugars led to an increase in the total post-thaw motility by ~50%, while protein supplementation lowered post-thaw motility. Motile spermatozoa hierarchically clustered according to their motility parameters, displaying a four-subpopulation (SP1-SP4) structure. SP1 was defined by low values of velocity but high overall linearity; SP2 was comprised of fast non-linear spermatozoa, that had high velocity values but low linearity; SP3 was characterized by fast linear spermatozoa, and SP4 by slow non-linear spermatozoa. Protocols developed in this study will lead to the creation of new and enhanced conservation strategies for this species.


Download data is not yet available.


Kotlik P, Tsigenopoulos C, Ráb P, Berrebi P. Two new Barbus species from the Danube River basin, with redescription of B. petenyi (Teleostei: Cyprinidae). Folia Zool. 2002;51:227-40.

Kottelat M, Freyhof J. Handbook of European freshwather fishes. Cornol: Publications Kottelat; 2007. 646 p.

Buonerba L. Phylogeography of Italian barbels (Cyprinidae, Barbus) inferred by mitochondrial and nuclear markers [dissertation]. Como: Università degli Studi dell'Insubria; 2010.

Dietrich G, Nynca J, Szczepkowki M, Dobosz S, Szczepkowska B, Ciereszko A. The effect of cryopreservation of semen from whitefish (Coregonus lavaretus) and northern pike (Esox lucius) using a glucose-mathanol extender on sperm motility parameters and fertilizing ability. Aquaculture. 2016;464:60-4.

Lahnsteiner F, Berger B, Horvath A, Urbanyi B, Weismann T. Cryopreservation of spermatozoa in cyprinid fishes. Theriogenology. 2000;54:1477-96.

Cabrita E, Sarasquete C, Martínez‐Páramo S, Robles V, Beirão J, Pérez‐Cerezales S, Herráez M.P. Cryopreservation of fish sperm: applications and perspectives. J Appl Ichthyol. 2010;26:623-35.

Martínez-Páramo S, Horváth Á, Labbé C, Zhang T, Robles V, Herráez P, Suquet M, Adams S, Viveiros A, Tiersch T, Cabrita E. Cryobanking of aquatic species. Aquaculture. 2017;472:156-77.

Asturiano JF, Cabrita E, Horváth Á. Progress, challenges and perspectives on fish gamete cryopreservation: a mini-review. Gen Comp Endocrinol. 2017;245:69-76.

Ciereszko A, Dietrich GJ, Nynca J, Liszewska E, Karol H, Dobosz S. The use of concentrated extenders to improve the efficacy of cryopreservation in whitefish sper-matozoa. Aquaculture. 2013;408:30-3.

Hamackova J, Kouril J, Kozak P, Stupka Z. Clove oil as an anaesthetic for different freshwater fish species. Bulg J Agric Sci. 2006;12:185-94.

Horváth Á, Jesenšek D, Csorbai B, Bokor Z, Raboczki É, Kaczkó D, Bernáth G, Hoitsy G, Urbányi B, Bajec SS, Snoj A. Application of sperm cryopreservation to hatchery practice and species conservation: A case of the Adriatic grayling (Thymallus thymallus). Aquaculture. 2012;358:213-5.

Lujić J, Bernáth G, Marinović Z, Radojković N, Simić V, Ćirković M, Urbányi B, Horváth Á, Fertilizing capacity and motility of tench Tinca tinca (L., 1758) sperm following cryopreservation. Aquac Res. 2015:48;102-10.

Organización Mundial de la Salud. WHO laboratory manual for the examination and processing of human semen. Geneva: World Health Organization; 2010. 271 p.

Saad A, Billard R. Spermatozoa production and volume of semen collected after hormonal stimulation in the carp, Cyprinus carpio. Aquaculture. 1987;65:67-77.

Vázquez AJF, Cedillo MJ, Quezada VJ, Rivas AC, Morales ECL, Ayala EME, Hernández MJ, González RA, Aragón MA. Effects of repeated electroejaculations on kinematic sperm subpopulations and quality markers of Mexican creole goats. Anim Reprod Sci. 2015;154:29-38.

Alvarez B, Arenal A, Fuentes R, Pimentel R, Abad Z, Pimentel E. Use of post-thaw silver carp (Hypophtalmichthys molitrix) spermatozoa to increase hatchery productions. In: Cabrita E, Robles V, Herráez MP, ediotrs. Methods in Reproductive Aquaculture: Marine and Freshwater Species. Biology Series. Boca Raton: CRCPress; 2008. p. 345-50.

Cabrita E, Anel L, Herraez MP. Effect of external cryoprotectants as membrane stabilizers on cryopreserved rainbow trout sperm. Theriogenology. 2001;56:623-35.

Glogowski J, Babiak I, Luczynski MJ, Luczynski M. Factors affecting cryopreservation efficiency and enzyme activity in Northern Pike, Esox lucius, sperm. J Appl Aquac. 1997;7:53-67.

Asturiano JF, Pérez L, Marco-Jiménez F, Olivares L, Vicente JS, Jover M. Media and methods for the cryopreservation of European eel (Anguilla anguilla) sperm. Fish Physiol Biochem. 2003;28:501-2.

Anchordoguy TJ, Rudolph AS, Carpenter JF, Crowe JH. Modes of interaction of cryoprotectants with membrane phospholipids during freezing. Cryobiology. 1987;24:324-31.

Suquet M, Dreanno C, Fauvel C, Cosson J, Billard R. Cryopreservation of sperm in marine fish. Aquac Res. 2000; 31:231-43.

Horváth Á, Jesenšek D, Csorbai B, Bokor Z, Raboczki É, Kaczkó D, Bernáth G, Hoitsy G, Urbányi B, Bajec SS, Snoj A. Application of sperm cryopreservation to hatchery practice and species conservation: A case of the Adriatic grayling (Thymallus thymallus). Aquaculture. 2012;358:213-5.

Yang H, Carmichael C, Varga ZM, Tiersch, TR. Development of a simplified and standardized protocol with potential for high-throughput for sperm cryopreservation in zebrafish Danio rerio. Theriogenology. 2007;68:128-36.

Vuthiphandchai V, Wilairattanadilok K, Chomphuthawach S, Sooksawat T, Nimrat S. Sperm cryopreservation of silver barb (Barbodes gonionotus): Cryoprotectants, cooling rate and storage time on sperm quality. Aquac Res. 2014;46:2443-51.

Mazur P. Principles of cryobiology. In: Fuller B, Lane N, Benson EE, editors. Life in the Frozen State. Boca Raton: CRC Press; 2004. p. 3-66.

Butts I, Mokdad A, Trippel E, Pitcher T. Development of a sperm cryopreservation protocol for redside dace: Implications for genome resource banking. Trans Am Fish Soc. 2013;142:671-80.

Urbanyi B, Horvath A, Dinnyes A. Cryopreservation of African catfish (Clarias gariepinus) sperm using different cryoptotectants. Theriogenology. 1999;51:296.

Horváth Á, Miskolczi E, Urbányi B. Cryopreservation of common carp sperm. Aquat Living Resour. 2003;16:457-60.

Nynca J, Dietrich GJ, Dobosz S, Grudniewska J, Ciereszko A. Efficient method for cryopreservation of brown trouth semen. Aquaculture. 2014;433:62-5.

Athurupana R, Takahashi D, Ioki S, Funahashi H. Trehalose in glycerol-free freeying extender enhances post -thaw survival of boar spermatozoa. J Reprod Dev. 2015;61:205-10.

Judycka S, Slowińska M, Nynca J, Liszewska E, Dobosz S, Ciereszko A. Effects of glucose, methanol concentration, and time of equilibration on post-thaw sperm motility of rainbow trout semen. Aquaculture. 2020;520;734-996.

Nynca J, Judycka S, Liszewska E, Dobosz S, Grudniewska J, Arai K, Fujimoto T, Ciereszko A. Utility of different sugar extenders for cryopreservation and post-thaw storage of sperm from Salmonidae species. Aquaculture. 2016;464:340-8.

Cabrita E, Engrola S, Conceicao LEC, Pousao-Ferreira P, Dinis MT. Successful cryopreservation of sperm from a sex-reversed dusky grouper, Epinephelus marginatus. Aquaculture. 2008;287:152-7.

Tian Y, Jiang J, Wang N, Qi W, Zhai J, Li B, Liang Y, Chen Y, Yang C, Chen S. Sperm of the giant grouper: cryopreservation, physiological and morphological analysis and application in hybridizations with red spotted grouper. J Reprod Dev. 2015;61:333-9.

Lahnsteiner F, Weisman T, Patzner RA. Fine structural changes in spermatozoa of the grayling, Thymallus thymallus (Pisces: Teleostei) during routine cryopreservation. Aquac Res. 1992;26:801-7.

Aoki K, Okamoto M, Tatsumi K, Ishikawa Y. Cryopreservation of medaka spermatozoa. Zool Sci. 1997;14:641-4.

De Leeuw FE, De Leeuw AM, Den Daas JHG, Colenbrander B, Verkleij AJ. Effects of various cryoprotective agents and membrane-stabilizing compounds on bull sperm membrane integrity after cooling and freezing. Cryobiology. 1993;30:32-44.

Koh ICC, Yokoi KI, Tsuji M, Tsuchihashi Y, Ohta H, Cryopreservation of sperm from seven-band grouper, Epinephelus septemfasciatus. Cryobiology. 2010;61:263-7.

Marco-Jiménez F, Garzon DL, Peńaranda DS, Pérez L, Viudes-de-Castro MP, Vicente JS, Jover M, Asturiano JF. Cryopreservation of European eel (Anguilla anguilla)spermatozoa: Effects of dilution ration, foetal bovine serum supplementation and cryoprotectants. Cryobiology. 2006;53:51-7.

Flores E, Taberner E, Rivera MM, Pena A, Rigau T, Miro J, Rodrigurz-Gill JE. Effects of freezing/thawing on motile sperm subpopulations of boar and donkey ejaculates. Theriogenology. 2008;70:936–45.

Muiño R, Tamargo C, Hidalgo CO, Pena AI. Identification of sperm subpopulations with defined motility characteristics in ejaculates from Holstein bulls: Effects of cryopreservation and between-bull variation. Anim Reprod Sci. 2008;109:27-39.

Muiño R, Pena AI, Rodriguez A, Tamargo C, Hidalgo CO. Effects of cryopreservation on the motile sperm subpopulations in semen from Asturiana de los Valles bulls. Theriogenology. 2009;72:860-8.

Dorado J, Galvez MJ, Murabito MR, Munoz-Serrano A, Hidalgo, M. Identification of sperm subpopulations in canine ejaculates: Effects of cold storage and egg yolk concentration. Anim Reprod Sci. 2011;127:106-13.

Quintero-Moreno A, Míro J, Rigau T, Rodrígez-Gil J. Identification of sperm subpopulation with specific motility characteristics in stallion ejaculates. Theriogenology, 2003;58:1973-90.

Martínez-Pastor F, Cabrita E, Soares F, Anel L, Dinis MT. Multivariate cluster analysis to study motility activation of Solea senegalensis spermatozoa: a model for marine teleosts. Reproduction, 2008;135:449-59.

Gallego V, Cavalcante S, Fujimoto R, Carneiro P, Azevedo,H, Maria A. Fish sperm subpopulations: changes after cryopreservation process and relationship with fertilization success in tambaqui (Colossoma macropomum). Theriogenology. 2017;87:16-24.

Beirão J, Perez-Cerezales S, Martínez-Páramo S, Herraez P. Effect of cryopreservation on fish sperm subpopulations. Cryobiology. 2011;62:22-31.




How to Cite

Kojadinović NM, Marinović Z, Veličković TZ, Milošković AM, Jakovljević MM, Horváth Ákos, Simić VM. Cryopreservation of Danube barbel Barbus balcanicus sperm and its effects on sperm subpopulation structure. Arch Biol Sci [Internet]. 2020Dec.25 [cited 2023Dec.10];72(4):525-34. Available from:
