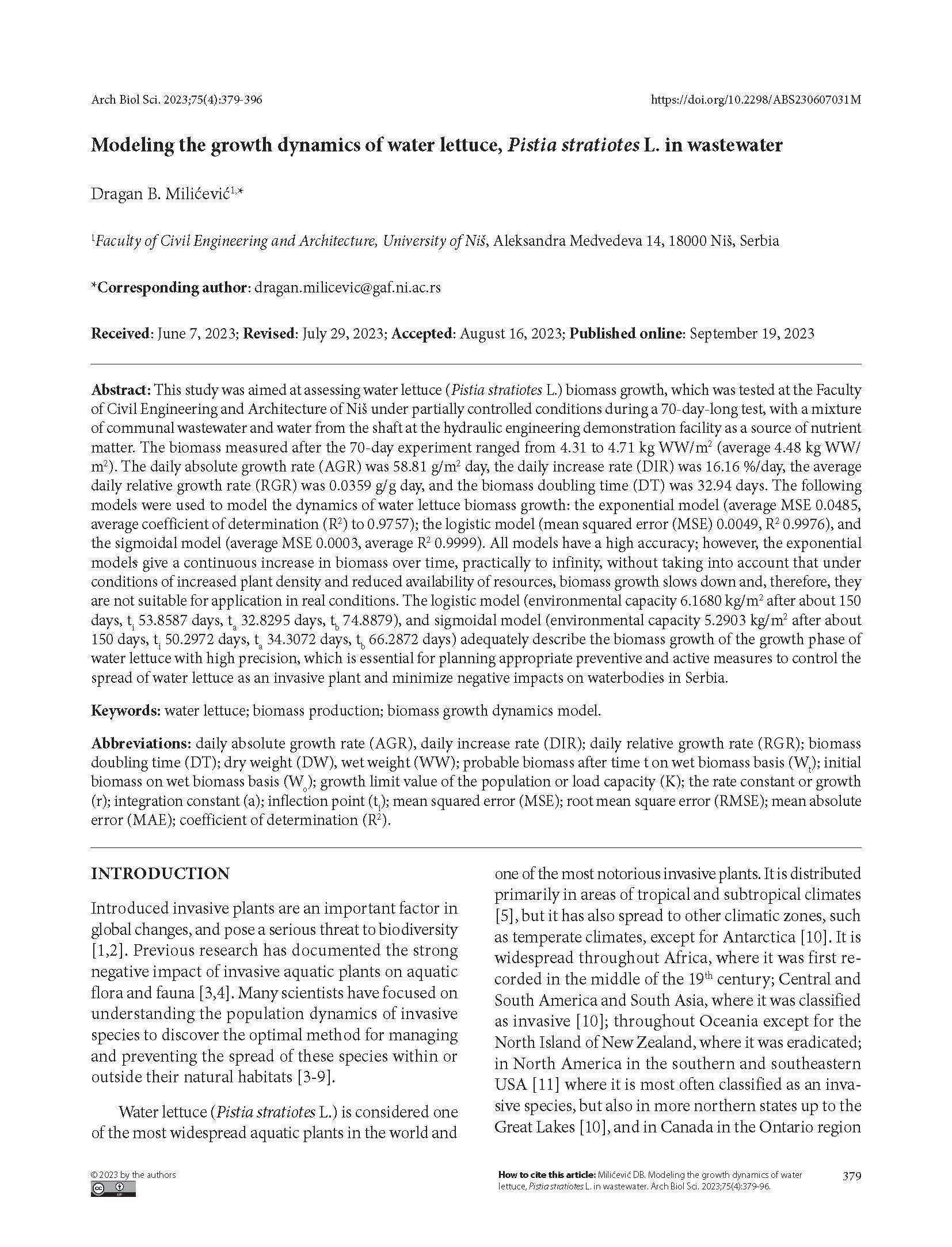

Modeling the growth dynamics of water lettuce, Pistia stratiotes L. in wastewater

Authors

Keywords:

water lettuce, biomass production, biomass growth dynamics model

Abstract

Paper description:

  • Growth dynamics of water lettuce under conditions of temperate-continental climate were determined.
  • Wet biomass of the plants was measured, statistical analysis of the obtained data was performed and growth dynamics and parameters of the growth dynamics model were defined.
  • A sigmoidal model is recommended for modeling the growth dynamics of water lettuce biomass. Based on this model the growth phases of water lettuce and the amount of biomass in individual phases were delineated.
  • The results assist in planning preventive measures to control the spread of water lettuce, an invasive plant, and minimize negative impact on water bodies.

Abstract: This study was aimed at assessing water lettuce (Pistia stratiotes L.) biomass growth, which was tested at the Faculty of Civil Engineering and Architecture of Niš under partially controlled conditions during a 70-day-long test, with a mixture of communal wastewater and water from the shaft at the hydraulic engineering demonstration facility as a source of nutrient matter. The biomass measured after the 70-day experiment ranged from 4.31 to 4.71 kg WW/m2 (average 4.48 kg WW/m2). The daily absolute growth rate (AGR) was 58.81 g/m2 day, the daily increase rate (DIR) was 16.16 %/day, the average daily relative growth rate (RGR) was 0.0359 g/g day, and the biomass doubling time (DT) was 32.94 days. The following models were used to model the dynamics of water lettuce biomass growth: the exponential model (average MSE 0.0485, average coefficient of determination (R2) to 0.9757); the logistic model (mean squared error (MSE) 0.0049, R2 0.9976), and the sigmoidal model (average MSE 0.0003, average R2 0.9999). All models have a high accuracy; however, the exponential models give a continuous increase in biomass over time, practically to infinity, without taking into account that under conditions of increased plant density and reduced availability of resources, biomass growth slows down and, therefore, they are not suitable for application in real conditions. The logistic model (environmental capacity 6.1680 kg/m2 after about 150 days, ti 53.8587 days, ta 32.8295 days, tb 74.8879), and sigmoidal model (environmental capacity 5.2903 kg/m2 after about 150 days, ti 50.2972 days, ta 34.3072 days, tb 66.2872 days) adequately describe the biomass growth of the growth phase of water lettuce with high precision, which is essential for planning appropriate preventive and active measures to control the spread of water lettuce as an invasive plant and minimize negative impacts on waterbodies in Serbia.

Downloads

Download data is not yet available.

References

Vitousek PM, D‘Antonio CMD, Loope LL, Rejmanek M, Westbrooks R. Introduced species: a significant component of human-caused global change. N Z J Ecol. 1997;21:1–16.

Thiebaut G. Invasion success of non-indigenous aquatic and semi-aquatic plants in their native and introduced ranges. A comparison between their invasiveness in North America and in France. Biol Invasions. 2007;9:1-12. https://doi.org/10.1007/s10530-006-9000-1

Stiers I, Crohain N, Josens G, Triest L. Impact of three aquatic invasive species on native plants and macroinvertebrates in temperate ponds. Biol Invasions. 2011;13:2715-26. https://doi.org/10.1007/s10530-011-9942-9

Santos MJ, Anderson LW, Ustin SL. Effects of invasive species on plantcommunities: an example using submerged aquatic plants at the regional scale. Biol Invasions. 2011;13:443–57. https://doi.org/10.1007/s10530-010-9840-6

Dewald LB, Lounibos LP. Seasonal growth of Pistia stratiotes L. in South Florida. Aquat Bot. 1990;36(3):263-75. https://doi.org/10.1016/0304-3770(90)90040-R

Sheppard AW, Shaw RH, Sforza R. Top 20 environmental weeds for classical biological control in Europe: a review of opportunities, regulations and other barriers to adoption. Weed res. 2006;46(2):93-117. https://doi.org/10.1111/j.1365-3180.2006.00497.x

Galal TM, Dakhil MA, Hassan LM, Eid EM. Population dynamics of Pistia stratiotes L. Rend Fis Acc Lincei. 2019;30:367-78. https://doi.org/10.1007/s12210-019-00800-0

Henry-Silva GG, Camargo AFM, Pezzato MM. Growth of free-floating aquatic macrophytes in different concentrations of nutrients. Hydrobiologia. 2008;610:153-60. https://doi.org/10.1007/s10750-008-9430-0

Gutiérrez EL, Ruiz EF, Uribe EG, Martínez JM. Biomass and productivity of water hyacinth and their application in control programs. In Julien MH, Hill MP, Center TD, editors. Biological and integrated control of water hyacinth. Second Meeting of the Global Working Group for the Biological and Integrated Control of Water Hyacinth; 2000 October 9-12; Beijing, China: Canberra: Australian Centre for International Agricultural Research; 2001. p. 109-19.

Chapman D, Coetzee J, Hill M, Hussner A, Netherland M, Pescott O, Stiers I, van Valkenburg J, Tanner R. Pistia stratiotes L. EPPO Bulletin. 2017;47(3):537–43. https://doi.org/10.1111/epp.12429

Adebayo AA, Briski E, Briski E, Kalaci O, Hernandez M, Ghabooli S, Beric B, Chan FT, Zhan A, Fifield E, Leadley T. Water hyacinth (Eichhornia crassipes) and water lettuce (Pistia stratiotes) in the Great Lakes: playing with fire? Aquat Invasions. 2011;6:91-6. https://doi.org/10.3391/ai.2011.6.1.11

Živković MM, Anđelković AA, Cvijanović DL, Novković MZ, Vukov DM, Šipoš ŠŠ, Ilić MM, Pankov NP, Miljanović BM, Marisavljević DP, Pavlović DM. The beginnings of Pistia stratiotes L. invasion in the lower Danube delta: the first record for the Province of Vojvodina (Serbia). Bioinvasions Rec. 2019;8(2):218–29. https://doi.org/10.3391/bir.2019.8.2.03

Neuenschwander P, Julien MH, Center TD, Hill MP. Pistia stratiotes L. (Araceae). In Muniappan R, Reddy GVP, Raman A, editors. Biological Control of Tropical Weeds Using Arthropods. London, UK: Cambridge University Press; 2009. p. 332–52.

den Hollander NG, Schenk IW, Diouf S, Kropff MJ, Pieterse AH. Survival strategy of Pistia stratiotes L. in the Djoudj National Park in Senegal. Hydrobiologia. 1999;415:21–7. https://doi.org/10.1023/A:1003817213753

Sommaruga R, Crosa D, Mazzeo N. Study on the decomposition of Pistia stratiotes L.(Araceae) in Cisne Reservoir, Uruguay. Int Rev Hydrobiol. 1993;78(2): 263-72. https://doi.org/10.1002/iroh.19930780211

Loudon JC. Loudon's encyclopaedia of plants. New impression ed. London: Longman, Brown, Green, and Longmans; 1855.

Hussner A. Alien aquatic plant species in European countries. Weed research. 2012;52(4):297-306. https://doi.org/10.1111/j.1365-3180.2012.00926.x

Mennema J. Wordt de Watersla (Pistia stratiotes L.) een nieuwe waterpest in Nederland. Natura. 1977;74(5):187-90.

Brundu G, Stinca A, Angius L, Bonanomi G, Celesti‐Grapow L, D'Auria G, et al. Pistia stratiotes L. and Eichhornia crassipes (Mart.) Solms.: emerging invasive alien hydrophytes in Campania and Sardinia (Italy). EPPO Bulletin. 2012;42(3):568-79. https://doi.org/10.1111/epp.12004

Boršić I, Rubinić T. First record of Pistia stratiotes L. (Araceae) in Croatia, with the consideration of possible introduction pathways. Period Biol. 2021;123(1-2):35-9. https://doi.org/10.18054/pb.v123i1-2.7674

Shapovalov MI, Saprykin MA. Alien species Pistia stratiotes L. (Araceae) in water bodies of urbanized territories of Southern Russia. Russian J Biol Invasions. 2016;7(2):195-9. https://doi.org/10.1134/S2075111716020119

Afanasyev SA, Savitskiy AL. Finding of Pistia stratioides in the Kaniv Reservoir (the Dnieper River, Ukraine) and Assessment of Risk of its Naturalization. Hydrobiological J. 2016;52(6):50-7. https://doi.org/10.1615/HydrobJ.v52.i6.60

Kazarinova GO, Gamulya YG, Gromakova AB. On the mass development of Pistia stratiotes (Araceae) in the Siversky Donets river (Kharkiv region). Ukr Bot J. 2014;71(1):17-21.

F V. Catalogue of neophytes in Belgium (1800-2005). Miscellaneous documentation. Meise: National Botanic Garden of Belgium; 2006.

Ružičková J, Lehotská B, Takáčová A, Semerád M. Morphometry of alien species Pistia stratiotes L. in natural conditions of the Slovak Republic. Biologia. 2020;75:1-10. https://doi.org/10.2478/s11756-019-00345-5

Hussner A. Long-term macrophyte mapping documents a continuously shift from native to non-native aquatic plant dominance in the thermally abnormal River Erft (North Rhine-Westphalia, Germany). Limnologica. 2014;48:39-45. https://doi.org/10.1016/j.limno.2014.05.003

Šajna N, Haler M, Škornik S, Kaligarič M. Survival and expansion of Pistia stratiotes L. in a thermal stream in Slovenia. Aquat Bot. 2007;97(1):75-9. https://doi.org/10.1016/j.aquabot.2007.01.012

Bogosavljević S, Zlatković B, Ranđelković V. Flora klisure Svrljiškog Timoka. Proceedings of the 9th Symposium on Flora of Southeastern Serbia and Neighbouring. Niš: 2007.

Ignjatović L. Macrobiological methods in wastewater treatment - Guide to unit operations. 1st ed. Sremska Mitrovica: ECO-TECH; 1995. 222 p. Serbian.

Milićević D, Trajković S, Gocić M. Application of Macrobiological Methods in the Settlement Wastewater Treatment. In Farooq R, Ahmad Z, editors. Biological Wastewater Treatment and Resource Recovery. London: InTech; 2017. p. 17-36.

Milićević D. Macrobiological methods in wastewater treatment - new approach in system modeling. Facta Un Ser Archit Civ Eng. 1996;1(3):373-80.

Brunel S, Schrader G, Brundu G, Fried G. Emerging invasive alien plants for the Mediterranean Basin. EPPO bulletin. 2010;40(2):219-38. https://doi.org/10.1111/j.1365-2338.2010.02378.x

Allen SK, Barros V, Burton I, Campbell-Lendrum D, Cardona OD, Cutter SL, Dube OP, Ebi KL, Field CB, Handmer JH, Lal PN, Lavell A, Mach KJ, Mastrandrea MD, McBean MA, Mechler R, Mitchell T, Nicholls N, O’Brien KO, Oki T, Oppenheimer M, Pelling M, Plattner GK, Pulwarty RS, Seneviratne SI, Stocker TF, van Aalst MK, Vera CS, Wilbanks TJ. Summary for Policymakers. In Field CB, Barros V, Stocker TF, Dahe Q, Dokken DJ, Ebi KL, Mastrandrea MD, Mach KJ, Plattner GK, Allen SK, Tignor M, Midgley PM, editors. Managing the Risks of Extreme Events and Disasters to Advance Climate Change Adaptation. Cambridge, UK and New York, USA: Cambridge University Press; 2012. p. 1-19.

Haag RW, Gorham PR. Effects of thermal effluent on standing crop and net production of Elodea canadensis and other submerged macrophytes in Lake Wabamun, Alberta. J Appl Ecol. 1977;14:835-51. https://doi.org/10.2307/2402815

Santamaria L, Van Vierssen W. Photosynthetic temperature responses offresh-and brackish-water macrophytes: a review. Aquat Bot. 1997;58:135-50. https://doi.org/10.1016/S0304-3770(97)00015-6

Hulme PE, Pyšek P, Jarošik V, Pergl J, Schaffner U, Vila M. Bias and errorin understanding plant invasion impacts. Trends Ecol Evol. 2013;28:212–8. https://doi.org/10.1016/j.tree.2012.10.010

Simberloff D, Martin JL, Genovesi P, Maris V, Wardle DA, Aronson J, Courchamp F, Galili B, García-Berthou E, Pascal M. Impacts of biological invasions: what’s what and the way forward. Trends Ecol Evol. 2013;28:58–66. http://dx.doi.org/10.1016/j.tree.2012.07.013

Sandoval JR, Rodríguez PA, Mikulyuk A. Pistia stratiotes (water lettuce). [Internet]. CABI Digital Library; 2013. [cited 2023 March 04.]. Available from: http://www.cabi.org/isc/datasheet/41496

Jansen H. Watersla (Pistia stratoides). Twirre. 2018;28(1):35-7.

Pistia stratiotes. [Internet]. Global Invasive Species Database; 2005. [cited 2023 May 13.]. Available from: http://www.iucngisd.org/gisd/speciesname/Pistia+stratiotes.

Upadhyay RK, Panda SK. Salt tolerance of two aquatic macrophytes, P. stratiotes and Salvinia molesta. Biol Plant. 2005;49:157–9.

Milićević DB. Modeling water hyacinth growth dynamics. Arch Biol Sci. 2023. https://doi.org/10.2298/ABS230222014M

De Casabianca MLC. Eichhornia crassipes: Production in repeated harvest systems on waste water in the Languedoc Region (France). Biomass. 1985;7(2):135-60. https://doi.org/10.1016/0144-4565(85)90039-3

Taylan K, Mustafa Y. Growth performance and biochemical profile of Azolla pinnata and Azolla caroliniana grown under greenhouse conditions. Arch Biol Sci. 2019;71(3):475-82. https://doi.org/10.2298/ABS190131030K

Ignjatovic L, Marjanović P. A low cost method for nutrient removal from domestic wastewaters. Wat Sci Tech. 1986;18(9):49-56.

Lachlan M. McDowall LM, Dampney RAL. Calculation of threshold and saturation points of sigmoidal baroreflex function curves. Am J Physiol Heart Circ Physiol. 2006;291:H2003–7. https://doi.org/10.1152/ajpheart.00219.2006

Promena klime Beograd. [Internet]. Meteoblu. [cited 2023 Marc 28.]. Available from: https://www.meteoblue.com/sr/climate-change/beograd_Србија_792680?month=12

Brönmark C, Hansson LA. The biology of lakes and ponds. 3rd edn. Oxford: Oxford university press; 2017. https://doi.org/10.1093/oso/9780198713593.001.0001

Litvinenko MI, Krivonos KA, Ščerbaň MG, Vasenko OG, Karaban OM. Ekologo-gigienični problemni aspekti ochoroni rekreacijnich vodojm [Ecological-hygienic problem aspects of recreational water reservoirs protection]. Epidemiologija, Gigiena, Infekcijni Chvorobi. 2014;11(2):13-8.

Downloads

Published

2023-12-13

How to Cite

1.
Milićević DB. Modeling the growth dynamics of water lettuce, Pistia stratiotes L. in wastewater. Arch Biol Sci [Internet]. 2023Dec.13 [cited 2024Apr.22];75(4):379-96. Available from: https://serbiosoc.org.rs/arch/index.php/abs/article/view/8772

Issue

Section

Articles
